| Type |
PTFE MEMBRANE |
| Component | Non-Alkaline Fiberglass |
| Weave Pattern | Double Twill |
| Processing Mode | PTFE Finished |
| Weight | 800±20 g/m2 | 22.12±0.74 oz/yd2 |
| Air Permeability | 2~5cm3/cm2/s | 4~10 cfm/sq ft |
| Warp Tensile Strength | 2000 N/25mm | 450 lbf/inch |
| Weft Tensile Strength | 2000N/25mm | 450 lbf/inch |
| Loss on Ignition | >10% | >10% |
| Continuously running temperature | ≤260ºC | ≤500ºF |
| Instantaneous maximum temperature | 280ºC | 536ºF |
| Corrosion resistance | excellent |

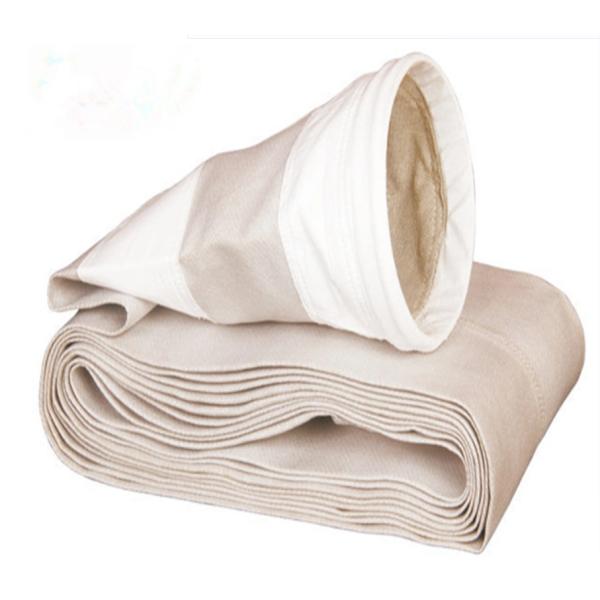

Baghouse Filtration Dust Filter bags Fiberglass Filter bags , 850GSM Fiberglass Cloth Filter Bags
Fiberglass Filter Bags Specification:
1. Material : Fiberglass staple fiber
2. Scrim: with fiberglass staple yarn
3. Width:≤2.2m
4. Thickness:2.3-2.7mm
5. Weight:800-900g/m2 ±10%
6. Temperature (ºC): Continue: 240, Instant: 280
Fiberglass Filter Bags Applications :
Fiberglass non woven filter media bags applications ranges in asphalt plant, incinerator, metallurgy, cement carbon black, liquid boiler, coal fire boiler dust filtration.
Fiberglass Filter Bags Advantages:
1. Good Temperature-Resistance. Max. Temp. 280 degree C.
2. High Filtration Efficiency: up to 99.9%
3. Excellent performance in Anti corrosion.
4.Fiberglass filters is the first choice for incinerator smoke , smoke in industries like metallurgy, cement , carbon black, liquid boiler, coal fire boiler.
5. Longer working time: more than 36 months.
6. Variety of finish treatments : Coating PTFE Membrane,PTFE Impregnation
7. Good heat resistance, flame retardant, anti-corrosion effect.
8 . Used in dust filtration of high temperature, high acidity, high alkalinity, fine high
temperature, collection of valuable metal powder , high adhesive property etc.
9. Customized by order.
With rich practical experience and working R&D team, we can design and develop kinds of filter media to satisfy the complex and diverse working conditions.
10. Advanced production lines: Complete testing and testing methods are the assurance to the products' quality.
